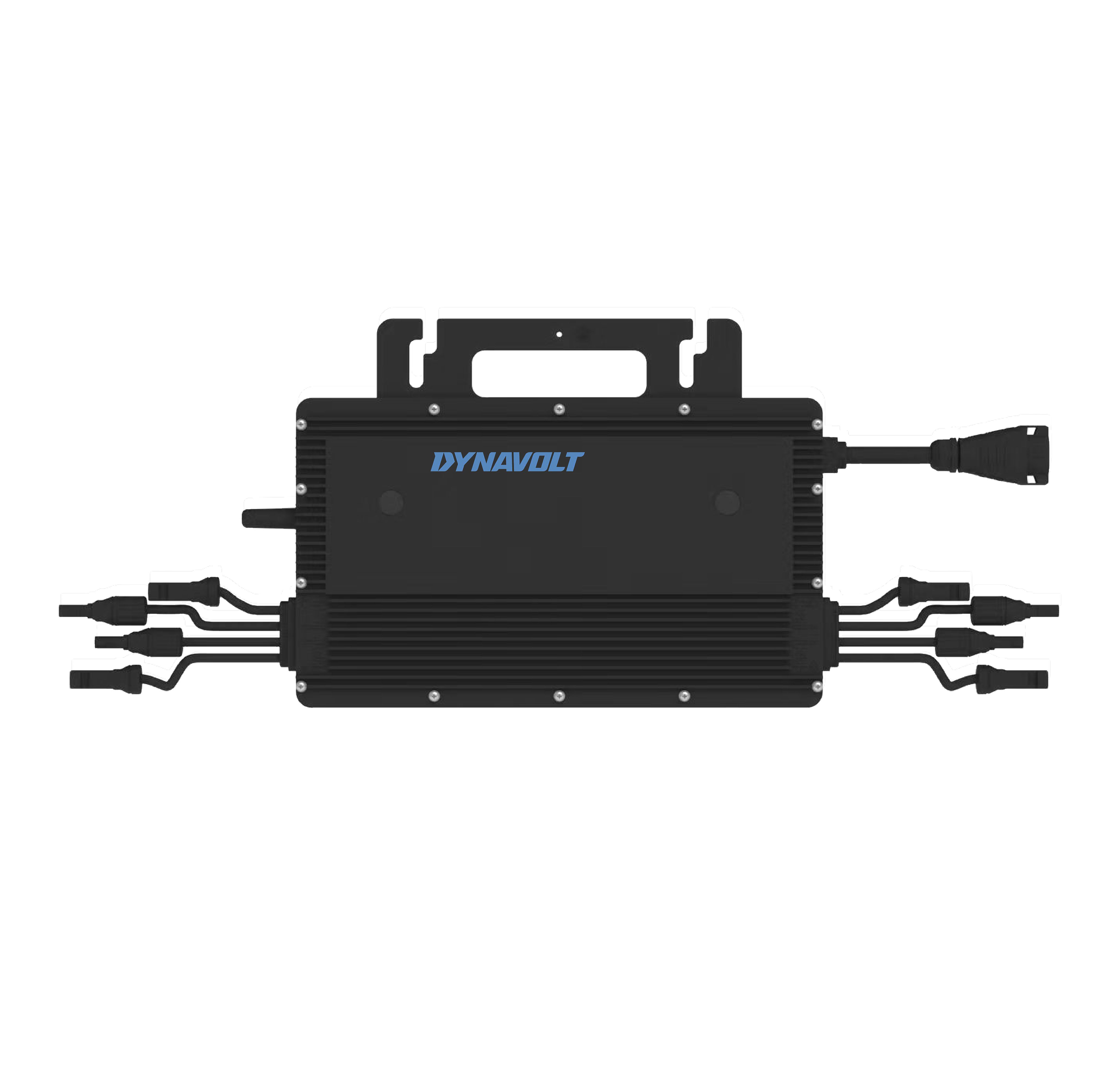

Micro Inverter

The Ml Series micro-inverters are specifically engineered to accommodate intricate layoutsand can be tailored to a diverse range ofcomplex application scenarios. They feature anintegrated monitoring system for real-timetracking of inverter status and parametersettings

Thanks to third-generation GaN semiconductors, efficiency isincreased, energy loss is reduced, and higher power output isachieved in a smaller space

Each pv input is equipped with an independent Mpp trackerallowing for flexible connections to Pv modules of differentorientations, power levels, and types

The installation process is simplified with intuitive connectors,allowing users to effortlessly mount micro-inverters without theneed for tools or intricate wiring

The integrated monitoring system features Wl-Fl, POE, or 4Gconnectivity options, allowing users to choose between an APp ornetwork platform for data monitoring

Advanced features

• Leveraging GaN semiconductors enables higher power output in a smaller form factor

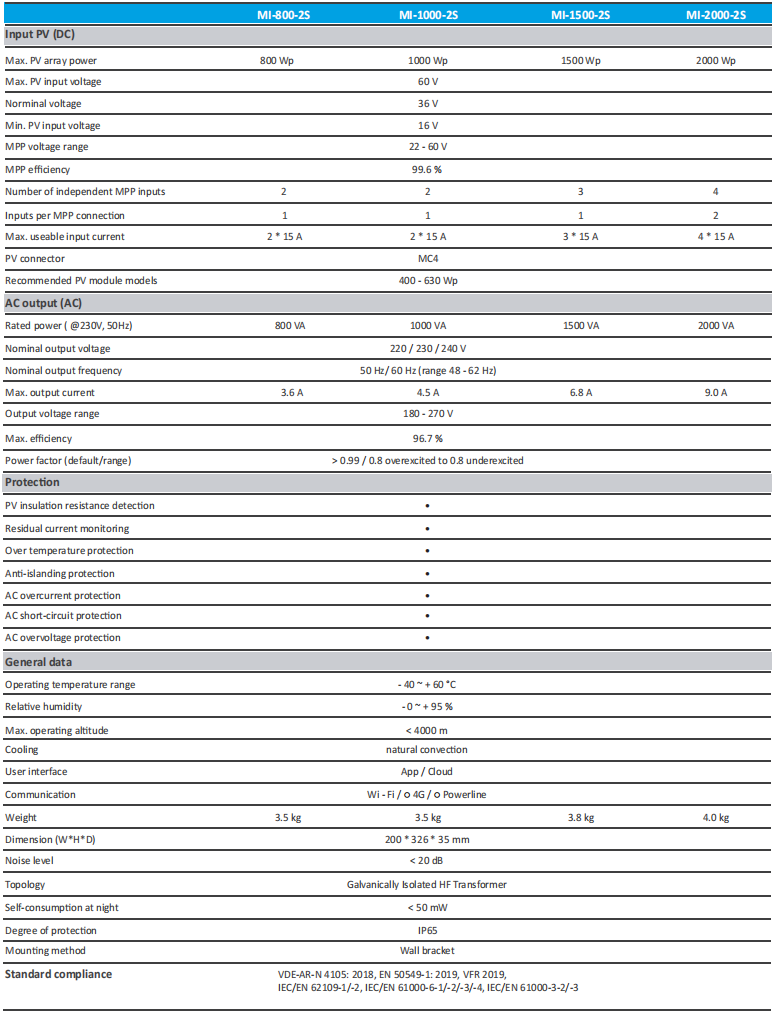

• Available in four models, maximum output of 2000VA

• Efficiency up to 96.7%, achieving the maximum utilization of solar energ

• Enhanced security is achieved through rapid shutdown and the use of a high-frequency isolation transformer

• Plug-and-play solar generation system that adapts to various photovoltaic modules

• Optional integrated Wi-Fi, 4G, or powerline communication module

• Two monitoring techniques: via the APP or the DYNAVOLT cloud

• Standard connetor with a self-locking mechanism for tool-free, rapid installation

• Compact in size, with a degree of protection up to IP67
