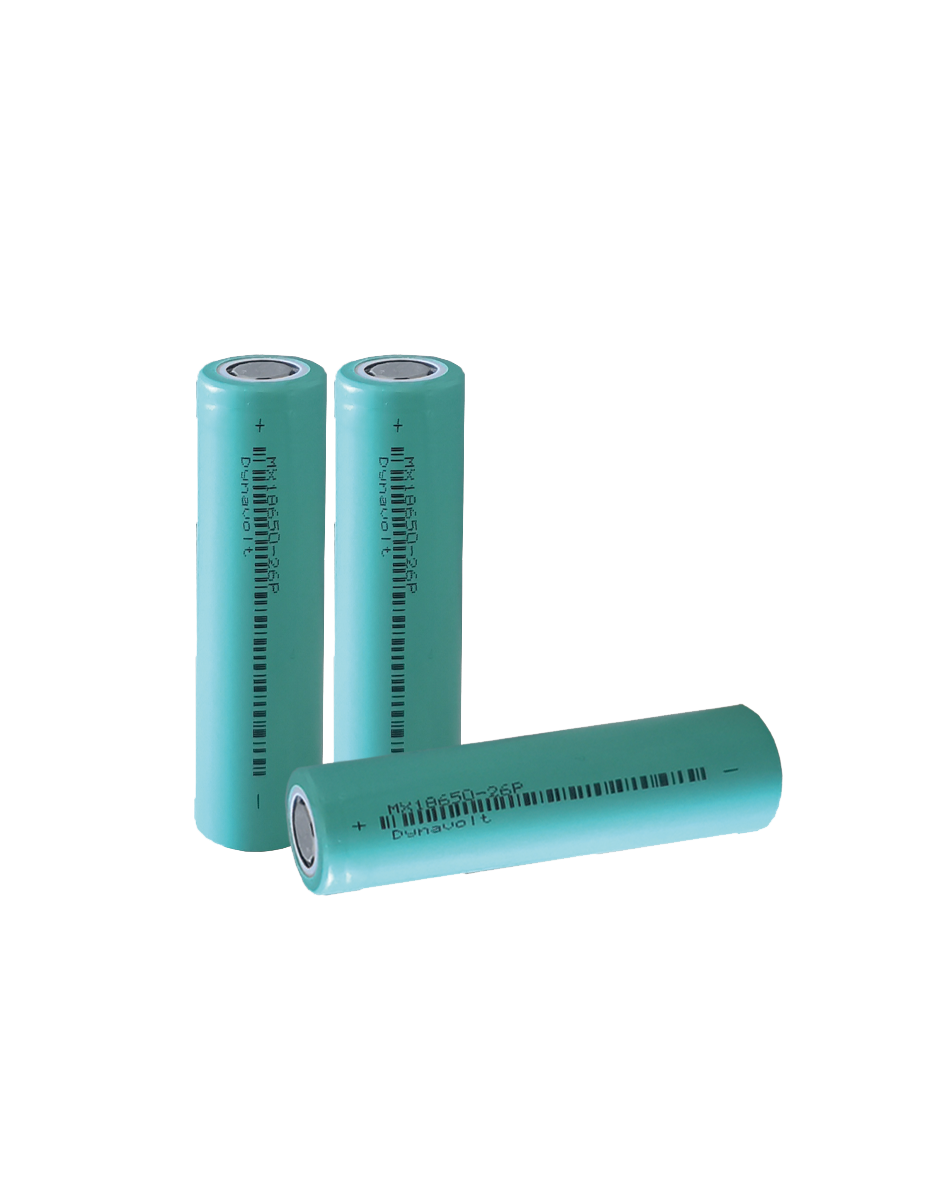

18650-26P(3C)

The MX Series cylindrical battery was developed using our exclusive formula, with ultra-high capacity, low impedance, 18650 size capacity range covering 2600mAh-3800mAh, excellent charge and discharge performance at 3C, 5C and 8C ratios. Can be widely used in electric bicycles, scooters, power tools, electric motorcycles, vacuum cleaners, robots and so on.

Detail

	Lithium Series
Model	MX18650-26P（3C）	MX18650-26P（5C）	MX18650-26P（8C）	MX18650-32P	MX18650-35P
Material System		NCM	NCM	NCM	NCM
Nominal voltage（V）	3.6	3.6	3.6	3.6	3.6
Typical capacity（mA）	2600	2600	2600	3200	3500
IR(mΩ)	≤30	≤30	≤15	≤35	≤25
Max Discharging Current(A) @25℃	7.5	12.5	20	9	10
Operating Temperature of Charge (℃)	0 ~ 45	0 ~ 45	0 ~ 45	0 ~ 45	0 ~ 45
Operating Temperature of Discharge(℃)	-20 ~ 60	-20 ~ 60	-20 ~ 60	-20 ~ 60	-20 ~ 60
Cycle Life	+1C/-3C，2.75V~4.2V，≥1000cycles@80%	+0.5C/-1C， 1.5V~3.95V，≥1000cycles	+0.5C/-1C， 1.5V~3.95V，≥1000cycles	+0.5C/-1C， 1.5V~3.95V，≥1000cycles	+0.5C/-1C， 1.5V~3.95V，≥1000cycles
Weight（g）	≤47	≤47	≤48	≤48	≤50
